TATRA Series

Home > Products > Piston Type Brake Chamber > TATRA Series > 正文

T815 Long Tube

Cateaorie：TATRA Series

Technical Data：
Max Operating Pressure: 1.0MPa Operating Temperature Range: -40℃～+80℃ Operating Pressure: 0.8MPa

View： 3961

Online：点击这里给我发消息

DETAIL

序号 型 号 编 号 制 动 形 式 行 程
ITEM MODEL ORIGINAL NO BRAKING METHOD STROKE
125 T815长筒 443.612.193.019 活塞
Piston		 75
　 　 　 　
　 　 　 　

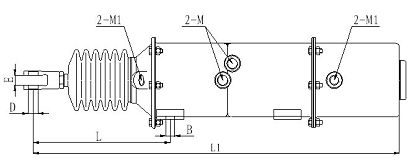

ITEM L1 L M1 B D E M
125 460 131 2-M14×1.5 φ13 φ14 13.5 2-M16×1.5
