DongFeng Series

Home > Products > Brake Chamber > DongFeng Series > 正文

EQ140 Rear/EQ140T Front/EQ145 Front

Cateaorie：DongFeng Series

Technical Data：
Max Operating Pressure: 1.0MPa Operating Temperature Range: -40℃～+80℃ Operating Pressure: 0.8MPa

View： 4258

Online：点击这里给我发消息

DETAIL

序号 型 号 编 号 制 动 形 式 行 程
ITEM MODEL ORIGINAL NO BRAKING METHOD STROKE
1 EQ140后(REAR) 　 皮膜
Diaphragm		 50
2 EQ140T前(FRONT) 　 50
3 EQ145前(FRONT) 　 50

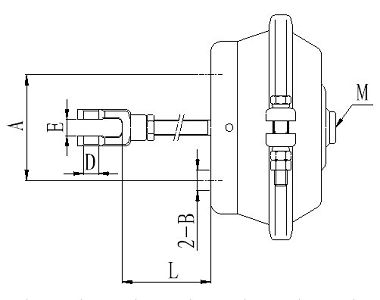

ITEM L A B D E M
1 27 82 2-M12内螺纹 φ12 12.5 1/4"NPT
2 180 82 2-M12内螺纹 φ12 12.5 1/4"NPT
3 34 82 2-M12内螺纹 φ12 12.5 1/4"NPT
