G Drum Type

Home > Products > Piston Type Brake Chamber > G Drum Type > 正文

T24/30、T30/30-E

Cateaorie：G Drum Type

Technical Data：
Max Operating Pressure: 1.0MPa Operating Temperature Range: -40℃～+80℃ Operating Pressure: 0.8MPa

View： 3455

Online：点击这里给我发消息

DETAIL

序号 型 号 编 号 制 动 形 式 行 程
ITEM MODEL ORIGINAL NO BRAKING METHOD STROKE
101 T24/30 925.491.111.0 皮膜+活塞
Piston+Diaphragm		 64
102 T30/30-E 925.492.102.1 64
　 　 　 　

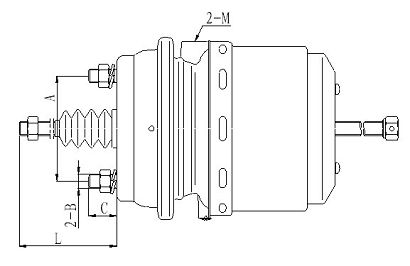

ITEM L A B C D E M
101 240 120.7 2-M16×1.5 40 　 　 2-M16×1.5
102 250 120.7 2-M16×1.5 40 　 　 2-M16×1.5
