Flange Type

Home > Products > Double Diaphragm Brake Chamber > Flange Type > 正文

20/24-L1、30/24-A1

Cateaorie：Flange Type

Technical Data：
Max Operating Pressure: 1.0MPa Operating Temperature Range: -40℃～+80℃ Operating Pressure: 0.8MPa

View： 3953

Online：

DETAIL

序号	型号		编号		制动形式		行程
NO.	MODEL		ORIGINAL NO		BRAKING METHOD		STROKE
60	20/24-L1				双皮膜 Double Diaphragm		60
61	30/24-A1						60

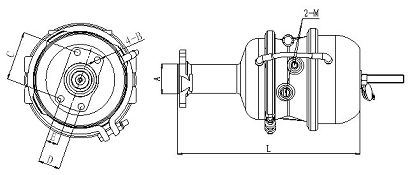

NO.	L	A	B	C	D	E	M
60	343	φ55	4-φ10.5	80	36	20	行Z3/8"停Z1/4"
61	344	φ55	4-φ10.5	80	36	18	2-3/8"NPT
