Drum Type

Home > Products > Double Diaphragm Brake Chamber > Drum Type > 正文

24/24、24/30-A、30/30-A

Cateaorie：Drum Type

Technical Data：
Max Operating Pressure: 1.0MPa Operating Temperature Range: -40℃～+80℃ Operating Pressure: 0.8MPa

View： 3901

Online：点击这里给我发消息

DETAIL

序号 型 号 编 号 制 动 形 式 行 程
NO. MODEL ORIGINAL NO BRAKING METHOD STROKE
47 24/24 　 双皮膜
Double Diaphragm		 64
48 24/30-A 　 64
49 30/30-A 　 64

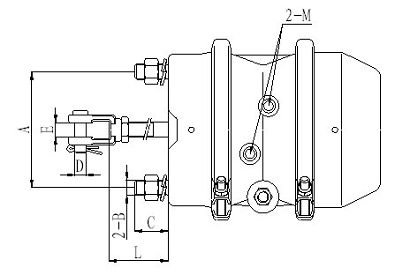

NO. L A B C D E M
47 270 120.7 2-5/8-11" 38 φ12.5 14.5 2-3/8"NPT
48 277 120.7 2-5/8-11" 38 φ12.5 14.5 2-3/8"NPT
49 300 120.7 2-5/8-11" 38 φ12.5 14.5 2-3/8"NPT
